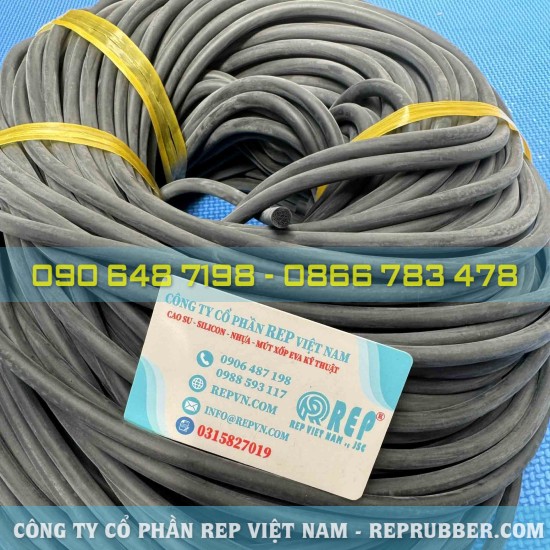

Foam rubber seal D7 – 7mm round rubber gasket for sealing

The D7 foam rubber seal is a round-profile rubber gasket with a nominal diameter of 7 mm. Depending on the actual product structure, this type of seal may be used in applications that require gap filling, cushioning, or sealing support between assembled components.

A 7 mm diameter is an important specification, but it is not sufficient on its own to select the right product. Customers should also determine the material structure, required length, installation gap dimensions, and operating conditions.

For applications requiring a comparison of different cross-sectional profiles, customers can refer to the EPDM rubber gasket product group available in the REP Rubber product system.

How Should the D7 Specification Be Checked?

For products with a round cross-section, the term “D7” or “φ7” is commonly used to describe a nominal diameter of 7 mm. However, when ordering or requesting custom manufacturing, providing only the information “D7” may not be sufficient to accurately determine the required product.

Customers should also check:

• Actual cross-sectional diameter.
• Cross-section uniformity.
• Required product length.
• Installation gap or groove dimensions.
• Compression level after installation.
• Required cutting or supply format.

When replacing an existing product, the dimensions should be compared with the actual installation position. A used rubber seal may have been compressed or deformed over time, so the dimensions measured from the old seal may not always accurately represent its original specifications.

Factors to Check Before Selecting a D7 Foam Rubber Seal

Actual Dimensions of the Installation Position

The dimensions of the gap or installation groove directly affect the selection of the appropriate cross-section. A product with a similar nominal size may not be suitable if the installation structure is different.

Product Length

Customers should determine whether the product is required by the meter, in pre-cut sections, or according to a specific length for each component. This information helps make the quotation and product preparation process more accurate.

Operating Conditions

The application environment is an important factor when selecting the material. If the installation location has specific requirements relating to temperature, humidity, or exposure to other substances, these conditions should be provided from the beginning.

For applications suitable for EPDM materials, customers can also refer to custom-profile EPDM rubber seals to compare different cross-sectional designs.

Gasket Compression

Actual compression performance depends on the product structure and selected material. Therefore, the decision should not be based solely on the nominal diameter; the overall assembly design should also be considered.

Can Foam Rubber Seals and Solid Rubber Seals Replace Each Other?

Not in every application.

Foam rubber and solid rubber have different structures. Each type may be suitable for different installation requirements. If an application requires a specific compression characteristic or material structure, replacing it with a product that has the same external dimensions but a different structure may not meet the intended requirements.

Therefore, when replacing an existing seal, customers should provide a physical sample or clear images whenever possible. In addition to round profiles, REP Rubber also supplies various custom-profile rubber seals, including U, D, H, and other profiles that can be selected according to the installation design.

Where Can a D7 Foam Rubber Seal Be Used?

The actual application of the product should be determined based on the material, product design, and installation conditions. With a round cross-section, a D7 seal may be considered for applications such as:

Filling Gaps Between Components

The product may be used in appropriately sized gaps to create a cushioning layer between assembled surfaces.

Supporting Sealing Applications

In suitably designed installation positions, a round-profile gasket can be used as part of a sealing solution.

Creating a Cushioning Layer

The seal may be considered for applications where direct contact between components needs to be reduced.

Industrial Equipment Applications

Depending on the equipment design, technical rubber seals may be selected for assembly, protection, or cushioning purposes.

For installation positions with different groove geometries, customers can also refer to U-profile EPDM rubber seals to compare different profile options according to the specific design.

How to Measure a Foam Rubber Seal Before Ordering

Accurate measurement is an important step in reducing errors when ordering or requesting custom manufacturing.

Step 1: Check the Cross-Section Shape

Determine whether the existing seal has a fully round cross-section or another type of molded profile.

Step 2: Measure at Multiple Points

If the existing seal has already been used, measurements should be taken at several points to assess whether the product has been compressed or deformed.

Step 3: Measure the Installation Position

In addition to measuring the old seal, the actual dimensions of the installation gap or groove should also be checked.

Step 4: Determine the Required Length

Specify the required length for each installation position or the total number of meters needed.

Step 5: Provide Images or a Physical Sample

Clear images showing the cross-section and an actual physical sample can help support a more accurate product identification and manufacturing process.

When Should You Request Custom Manufacturing Based on a Sample or Drawing?

Custom manufacturing may be suitable in cases where:

• No standard product matches the required specifications.
• A specific length or shape is required.
• The existing product has a special cross-section.
• A technical drawing is available and production must follow the drawing.
• A project requires a large quantity of products with consistent specifications.
• The new product needs to be matched against an existing physical sample.

For components with non-round designs, customers can also refer to D-profile EPDM rubber seals to better understand the differences between various cross-sectional profiles.

Information Required for a Quotation

To make consultation and quotation more accurate, customers should prepare:

• Product dimensions.
• Cross-sectional shape.
• Required length.
• Required quantity.
• Images of the existing product.
• Physical sample, if available.
• Technical drawing.
• Installation position.
• Operating conditions.

Providing complete information helps reduce communication time and minimizes the risk of selecting an unsuitable specification.

Important Considerations When Replacing a D7 Foam Rubber Seal

When replacing an existing seal, customers should not select a product based on a single specification alone.

The following factors should be checked for compatibility:

1. Product cross-section.
2. Installation dimensions.
3. Required length.
4. Operating environment.
5. Material structure.
6. Actual application requirements.

If the application requires a specific material or profile, the technical requirements should be discussed clearly before starting large-volume production.

For applications with specific material requirements, customers can also explore the silicone rubber gasket product group to learn more about the available product profiles.

Frequently Asked Questions

What Does D7 Mean?

For products with a round cross-section, “D7” or “φ7” is commonly used to indicate a nominal diameter of 7 mm. However, the actual dimensions and applicable tolerances should be confirmed based on the sample or specific requirements.

Can a D7 Foam Rubber Seal Be Supplied in a Custom Length?

The required product length should be discussed when placing the order. Customers should provide the specific length requirements so that the appropriate supply option can be determined.

Can the Product Be Custom Manufactured Based on a Sample?

A physical sample, product images, or a technical drawing can be used as reference information when determining custom manufacturing requirements.

Can a D6 Seal Be Replaced with a D7 Seal?

Replacement should be based on the actual installation dimensions and technical requirements. A difference in cross-sectional size may affect the fit and performance after installation.

What Information Should Be Provided Before Ordering?

Customers should provide the dimensions, profile shape, required length, quantity, product images or physical sample, and operating conditions if there are any special requirements.

Contact REP Vietnam for D7 Foam Rubber Seals and Custom Manufacturing

When looking for a D7 foam rubber seal, customers should prepare information regarding the dimensions, installation position, required length, and quantity. For products that require precise matching, a physical sample or technical drawing can help make the specification identification process more effective.
