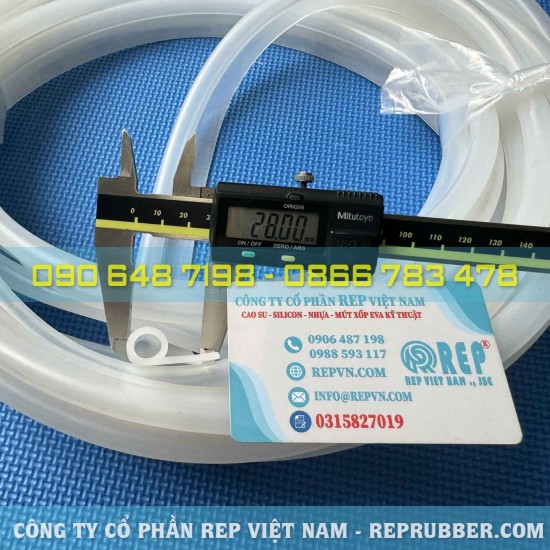

P-shaped Silicone rubber gasket 28x12x2 is a molded Silicone sealing profile designed to seal gaps, reduce water and dust ingress, and compensate for minor installation variations between mating surfaces.

The P-shaped profile provides an elastic body that can deform under compression and maintain contact with the opposing surface during equipment operation.

The 28x12x2 mm profile is suitable for applications requiring both a fixing section and an elastic sealing section, including doors, machine cabinets, equipment housings, metal frames, and industrial machinery.

Common P-Shaped Silicone Gasket Sizes

In addition to 28x12x2 mm, commonly searched P-shaped Silicone gasket sizes include:

Note: P-shaped gasket dimensions may be defined differently by different manufacturers. The cross-sectional drawing or physical sample should be checked before ordering.

Construction of P-Shaped Silicone Gasket 28x12x2

A P-shaped gasket generally consists of a fixing section and a curved elastic sealing section.

When installed, the P-shaped body can deform elastically under compression. It then generates contact pressure against the mating surface and helps reduce open pathways.

This design is particularly suitable for:

• Non-uniform gaps.
• Light vibration.
• Frequently opened doors.
• Dust and water protection.
• Minor installation variations.

Water Resistance and Dust Protection

Silicone provides good aging resistance and is suitable for various environmental conditions. When correctly sized and compressed, the P-shaped sealing section creates relatively continuous contact with the mating surface.

It can help:

• Reduce water ingress through gaps.
• Reduce dust penetration.
• Limit moisture entry.
• Reduce vibration at the contact area.
• Cushion two mating components.

However, overall water-tightness depends on groove design, compression, surface flatness, and gasket joints. Sealing performance should not be evaluated based on Silicone material alone.

Why Is the P Shape Effective for Sealing?

Compared with a flat sealing strip, the P-shaped profile provides an elastic body that can deform more effectively under compression.

When the door or cover closes:

Compression surface → P-shaped body deforms → contact pressure is generated → gap is reduced.

This allows the gasket to accommodate minor variations between mating surfaces.

P-shaped Silicone gaskets are particularly useful for door edges, cabinet frames, machine covers, equipment housings, and applications requiring both mechanical fixing and sealing.

How to Select the Correct P-Shaped Gasket

This is one of the most important considerations before ordering.

1. Measure the Actual Gap

Measure several locations because the gap may vary.

2. Check the Fixing Method

Determine whether the gasket is installed by adhesive bonding, clamping, insertion into a groove, or another method.

3. Measure the Closed Position

For doors and covers, measure the distance between mating surfaces when fully closed.

4. Avoid Oversized Profiles

A gasket that is too large may cause:

• Difficult closing.
• Excessive compression force.
• Excessive deformation.
• Reduced service life under repeated opening and closing.

5. Avoid Undersized Profiles

A gasket that is too small may result in:

• Insufficient compression.
• Incomplete contact.
• Open leakage paths.
• Reduced water and dust protection.

If the correct size is uncertain, providing an existing gasket sample or installation photo with gap dimensions is often the most reliable way to determine the required profile.

Applications of P-Shaped Silicone Gaskets

Typical applications include:

• Machine cabinet doors.
• Electrical cabinets.
• Equipment doors.
• Machine housings.
• Machine covers.
• Metal frames.
• Industrial cabinets.
• Machinery.
• Electrical equipment.
• Outdoor equipment.
• Dust and water protection applications.

Depending on the application, Silicone can be selected with different hardness, color, and temperature-resistance characteristics.

Custom P-Shaped Silicone Gaskets

REP Vietnam can manufacture P-shaped Silicone gaskets according to:

• Physical samples.
• Technical drawings.
• Custom dimensions.
• Required hardness.
• Required colors.
• Specific lengths.
• Dimensional tolerances.
• Small quantities.
• Large-volume orders.

For OEM applications, drawings should clearly indicate height, width, thickness, fixing section dimensions, and corner radii, where applicable.

P-Shaped Silicone Gasket 28x12x2 Pricing

Pricing depends on:

• Cross-sectional dimensions.
• Silicone grade.
• Hardness.
• Color.
• Length.
• Quantity.
• Tolerances.
• Processing requirements.

For an accurate quotation, customers should provide:

Dimensions → required length → quantity → operating environment → operating temperature.

For replacement applications, providing an existing gasket sample is often the fastest way for the technical team to verify the profile.

Supply of P-Shaped Silicone Gaskets from REP Vietnam

REP VIETNAM JOINT STOCK COMPANY supplies P-shaped Silicone rubber gasket 28x12x2 and other sizes for sealing doors, machine cabinets, equipment, and industrial structures.

Products can be manufactured according to samples, technical drawings, or custom dimensions to suit specific installation requirements.

Customers can provide:

Sample → dimensions → installation location → temperature → operating environment → quantity

for technical consultation and profile selection.
