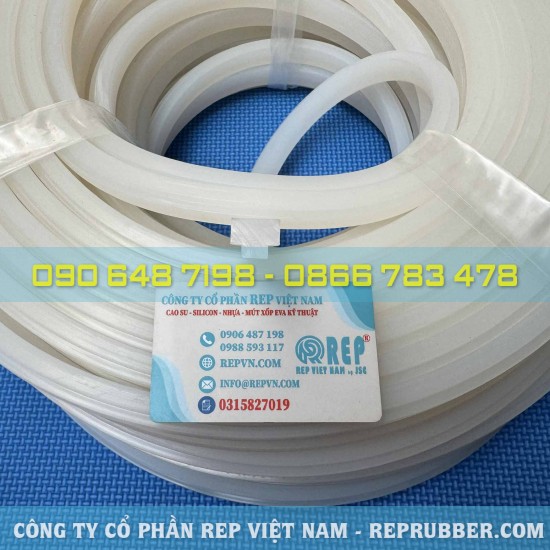

White Silicone T-shaped gasket 15x12x8 is a Silicone sealing profile designed to seal gaps, provide cushioning, reduce vibration, and limit the entry of dust and moisture in machinery, equipment cabinets, technical doors, and industrial structures.

With a nominal size of 15x12x8 mm, this profile is suitable for applications with a matching groove or slot. Silicone offers good heat resistance and aging resistance, helping the gasket maintain its flexibility during service when the correct material grade is selected.

Note: The 15x12x8 mm dimensions should be checked against the actual drawing or sample to confirm the exact width, height, and T-base dimensions before mass production.

What is a 15x12x8 White Silicone T-Shaped Gasket?

A T-shaped Silicone gasket features a T-profile cross-section consisting of a top sealing section and a base section designed to fit into a groove or slot.

Reference specifications include:

• Size: 15x12x8 mm
• Profile: T-shaped
• Material: Silicone
• Color: White
• Properties: Flexible, heat resistant, aging resistant
• Applications: Gap sealing, machine doors, equipment cabinets, and industrial machinery

The T-profile allows the gasket to be positioned inside a groove, while the upper section provides the contact area for sealing.

Benefits of White Silicone T-Shaped Gaskets

Silicone is widely used in technical sealing applications because it can maintain flexibility under changing temperature conditions.

White Silicone T-shaped gaskets can provide:

• Good heat resistance depending on the Silicone grade.
• Stable elasticity.
• Good aging resistance.
• Good ozone and UV resistance.
• Suitability for humid environments.
• Dust and moisture protection when properly installed.
• Clean white appearance.
• Custom manufacturing based on samples or drawings.

The actual temperature range depends on the Silicone grade and material formulation. For ovens, drying cabinets, or heating equipment, the actual operating temperature should be confirmed before material selection.

Applications of 15x12x8 White Silicone T-Gaskets

The T-profile is suitable for applications with a groove or slot for mechanical retention.

Common applications include:

Machine and Equipment Doors

The gasket provides cushioning between the door and frame and helps reduce the gap when the door is closed.

Electrical and Control Cabinets

It can be installed around cabinet doors or other areas requiring protection against dust and moisture.

Industrial Machinery

The gasket provides cushioning between components and can help reduce vibration and direct contact.

High-Temperature Equipment

Silicone is suitable for elevated-temperature applications when the correct material grade is selected.

Why Does a T-Shaped Gasket Provide Good Positioning?

Unlike a flat gasket that simply sits on a surface, the T-shaped base is designed to fit into a groove.

When properly sized, the base helps keep the gasket in position during opening, closing, or vibration.

The upper T-section creates a contact area with the opposite surface and can help:

• Seal gaps.
• Limit dust entry.
• Limit moisture entry.
• Reduce vibration.
• Reduce impact.
• Provide an elastic cushion.

Actual sealing performance depends on compression, groove dimensions, Silicone hardness, and surface flatness.

How to Select the Correct 15x12x8 Silicone T-Gasket

Correct sizing is particularly important when replacing an existing gasket.

Measure the Groove

Use a caliper to measure the groove width and depth to determine whether the T-base will fit correctly.

Measure the Gap

For doors and machine covers, measure the distance between the two surfaces when closed.

Check the Gasket Height

The 12 mm or 15 mm dimension should be compared with the available installation space. An oversized gasket may cause the door to bind.

Check the Base Thickness

The 8 mm base should match the installation groove. An undersized base may move during operation, while an oversized base can make installation difficult.

An Oversized Gasket Can Cause Door Binding

A common installation problem is selecting a gasket based only on a similar nominal size without checking the actual gap.

If the gasket is too thick:

• The door may become difficult to close.
• Compression force increases.
• The gasket may be excessively compressed.
• The profile may deform.
• Service life may be reduced.

If the gasket is too thin:

• Compression may be insufficient.
• The gap may remain open.
• Sealing performance may decrease.
• The gasket may not remain securely positioned.

Therefore, 15x12x8 mm should be treated as a reference specification until it is verified against the actual installation groove.

Custom White Silicone T-Gasket Manufacturing

REP Vietnam can manufacture Silicone T-shaped gaskets according to:

• Physical samples.
• Technical drawings.
• Custom dimensions.
• Silicone hardness.
• White color requirements.
• Required lengths.
• Heat-resistance requirements.
• Small or large quantities.

If there is no technical drawing, customers can provide a sample gasket, groove dimensions, and installation photos. This information allows the technical team to determine the required profile more accurately.

OEM Silicone T-Gasket Manufacturing

For machinery and equipment manufacturing, gasket dimensions should remain consistent between production batches.

A typical process is:

Sample/Drawing → Profile inspection → Silicone selection → Prototype → Trial installation → Approval → Mass production.

This approach is suitable for companies replacing imported gaskets or requiring a custom sealing profile based on equipment design.

White Silicone T-Gasket 15x12x8 Price

The product price depends on:

• Profile dimensions.
• Silicone grade.
• Hardness.
• Color.
• Required length.
• Order quantity.
• Tolerance requirements.
• Custom tooling or drawing requirements.

For an accurate quotation, please provide the 15x12x8 mm specification, required length, and quantity. For custom production, a sample or technical drawing should also be provided for profile verification.

Supply of 15x12x8 White Silicone T-Shaped Gaskets

REP VIETNAM JOINT STOCK COMPANY supplies and manufactures 15x12x8 white Silicone T-shaped gaskets for machinery, equipment cabinets, technical doors, and industrial applications.

Customers can order according to standard specifications or provide a sample, technical drawing, and groove dimensions for custom production.
